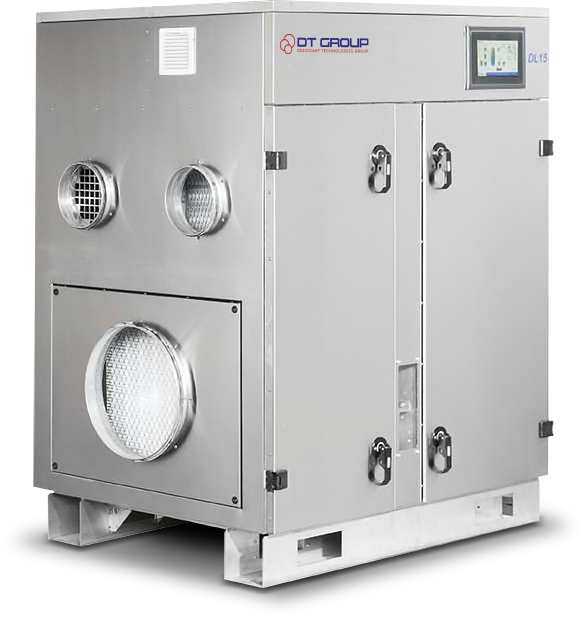

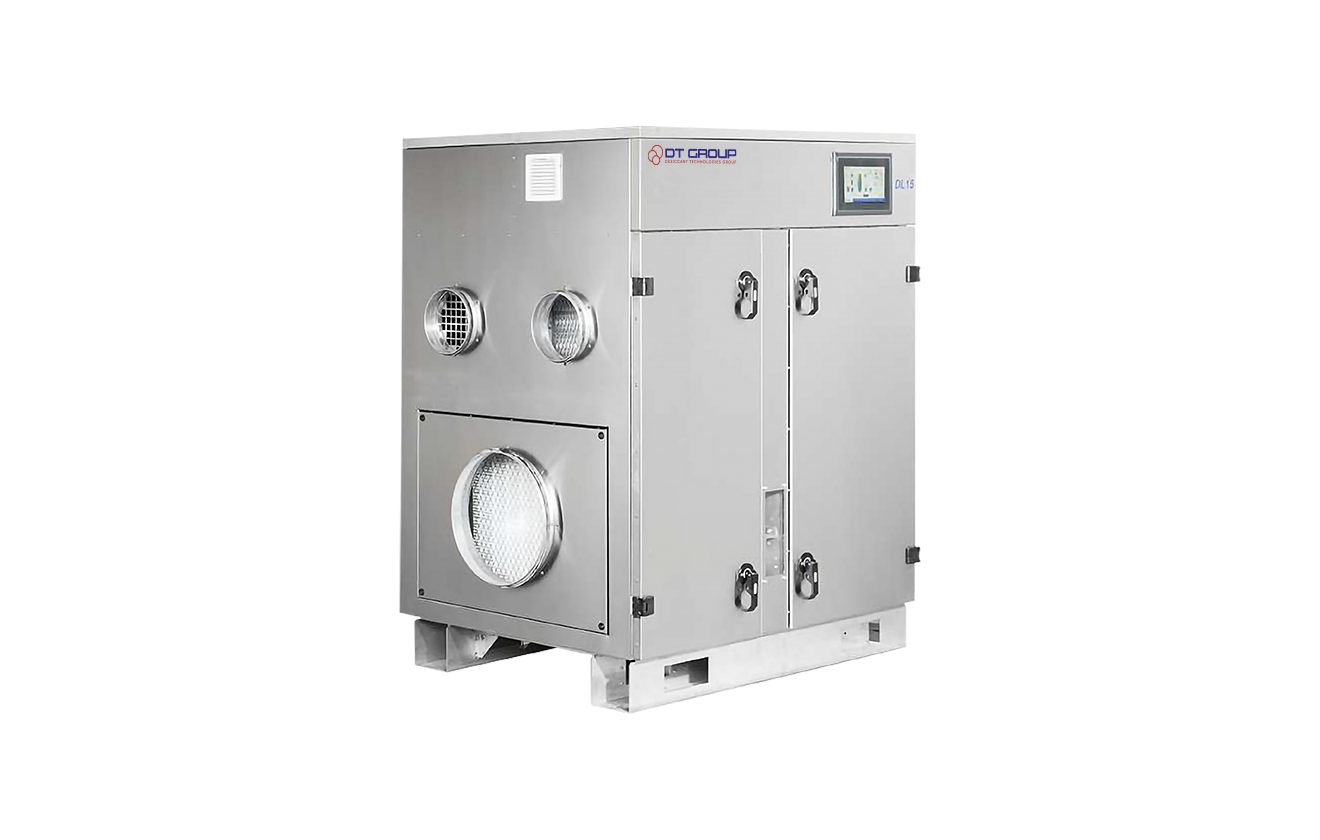

Desiccant Dehumidifiers: DL Range
DL25
Designed to be the most advanced, reliable, quietest, and user-friendly dehumidifiers available on the market today. Ultra-quiet, low maintenance dehumidifier, that provides the end user a host of information previously not seen on small/medium industrial desiccant dehumidifiers.

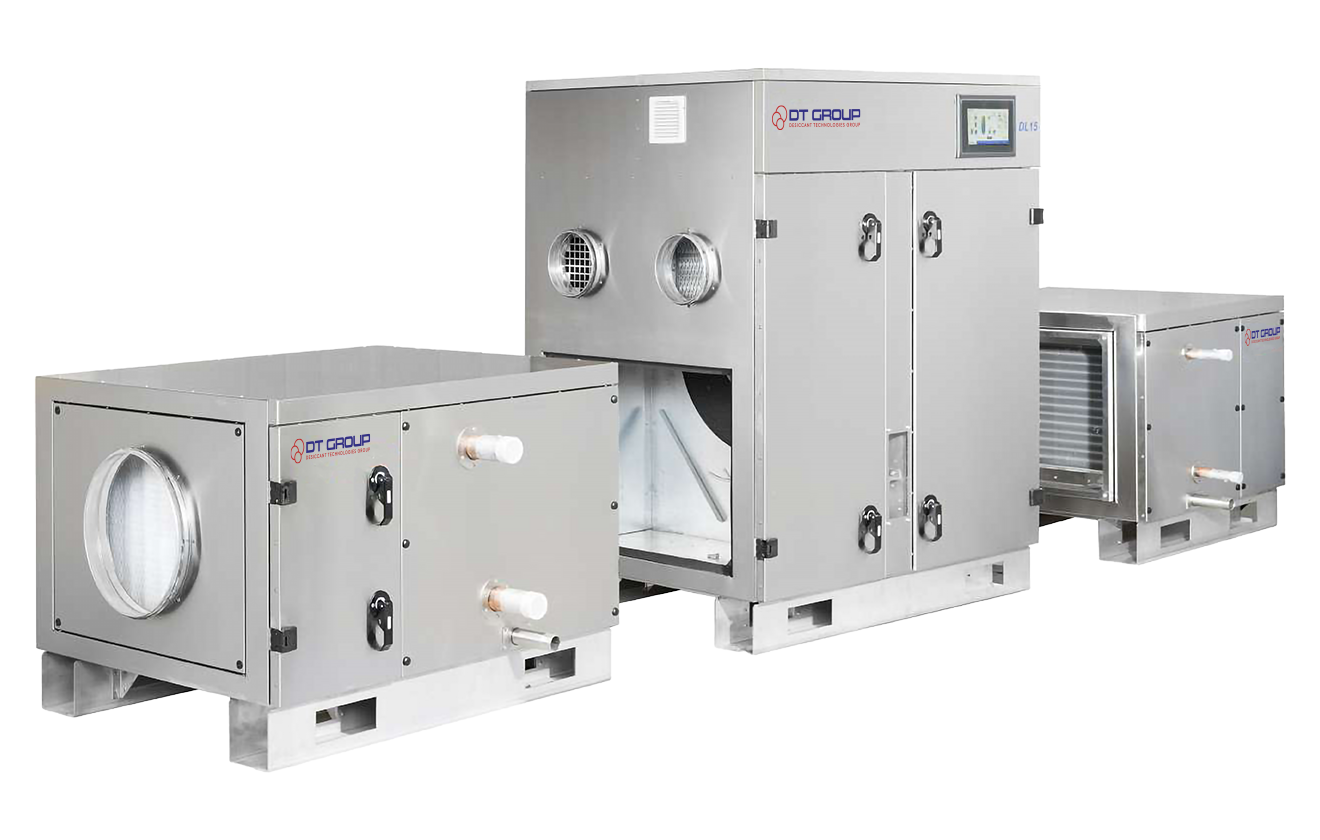

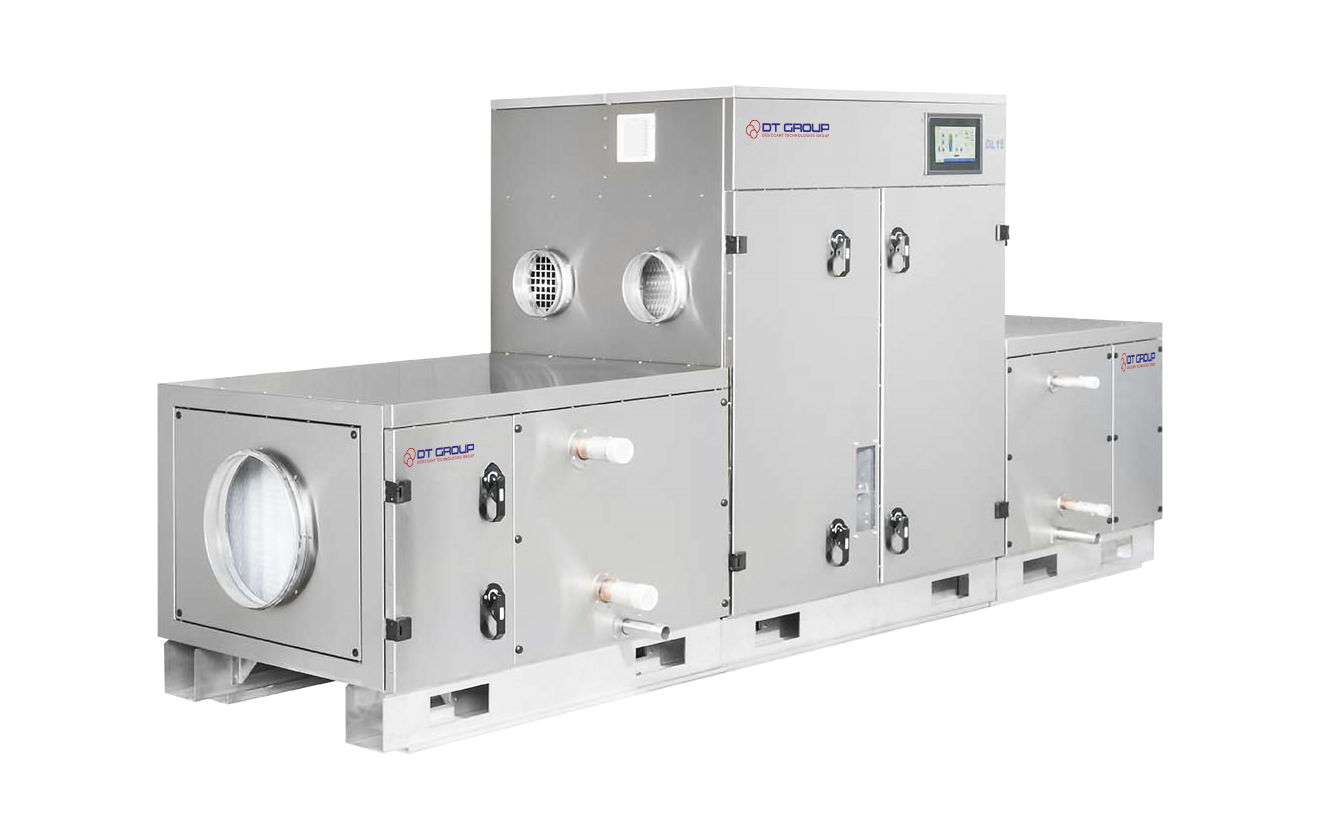

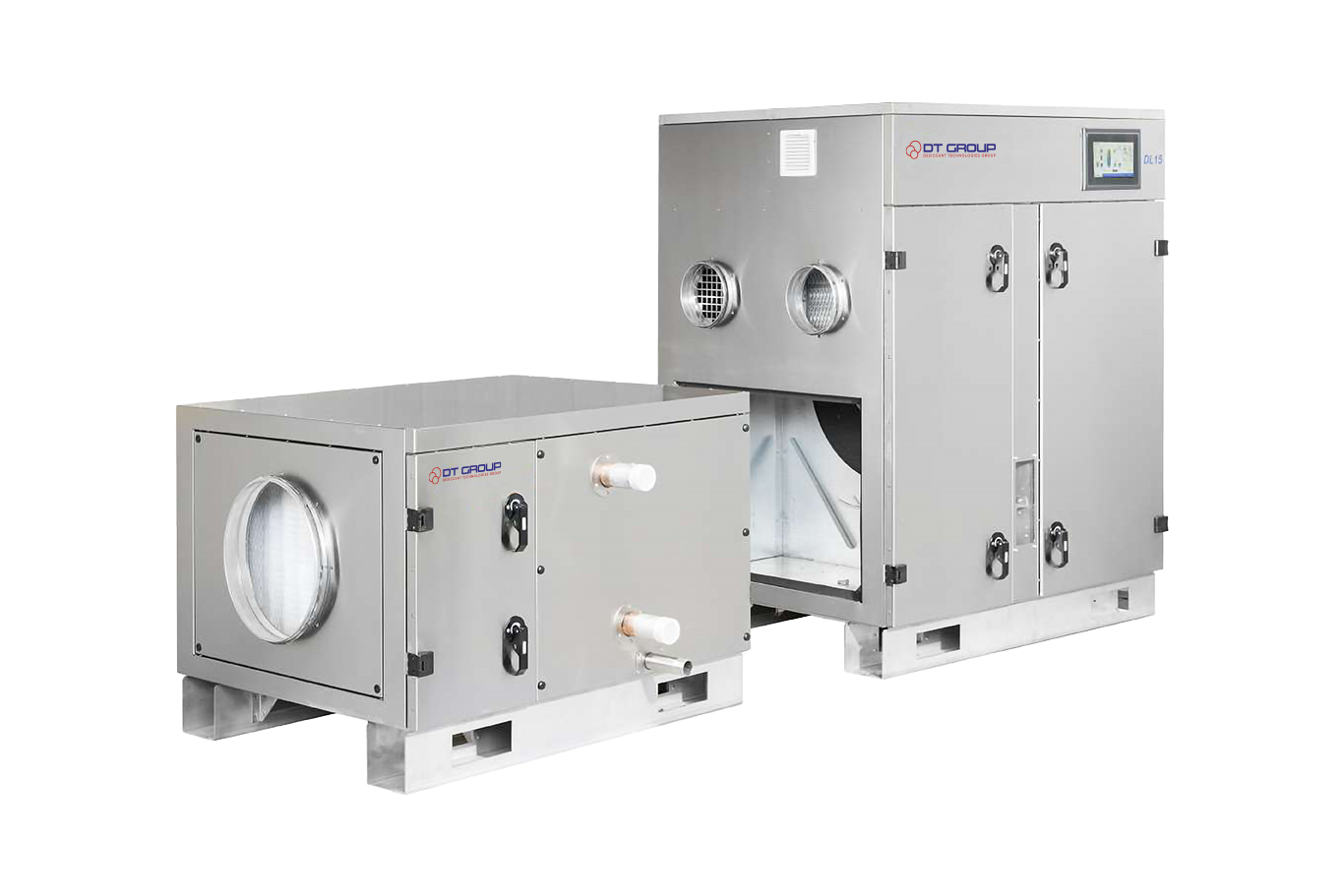

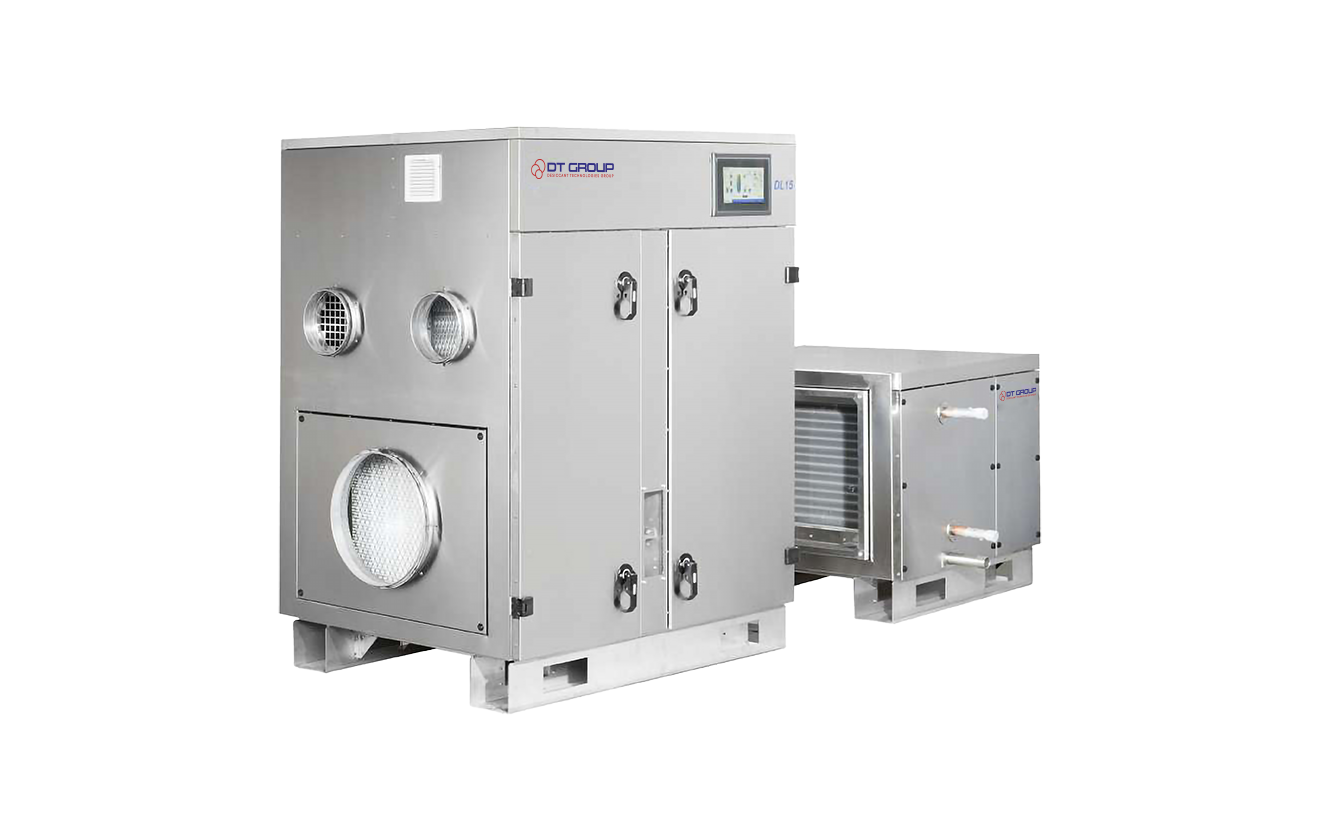

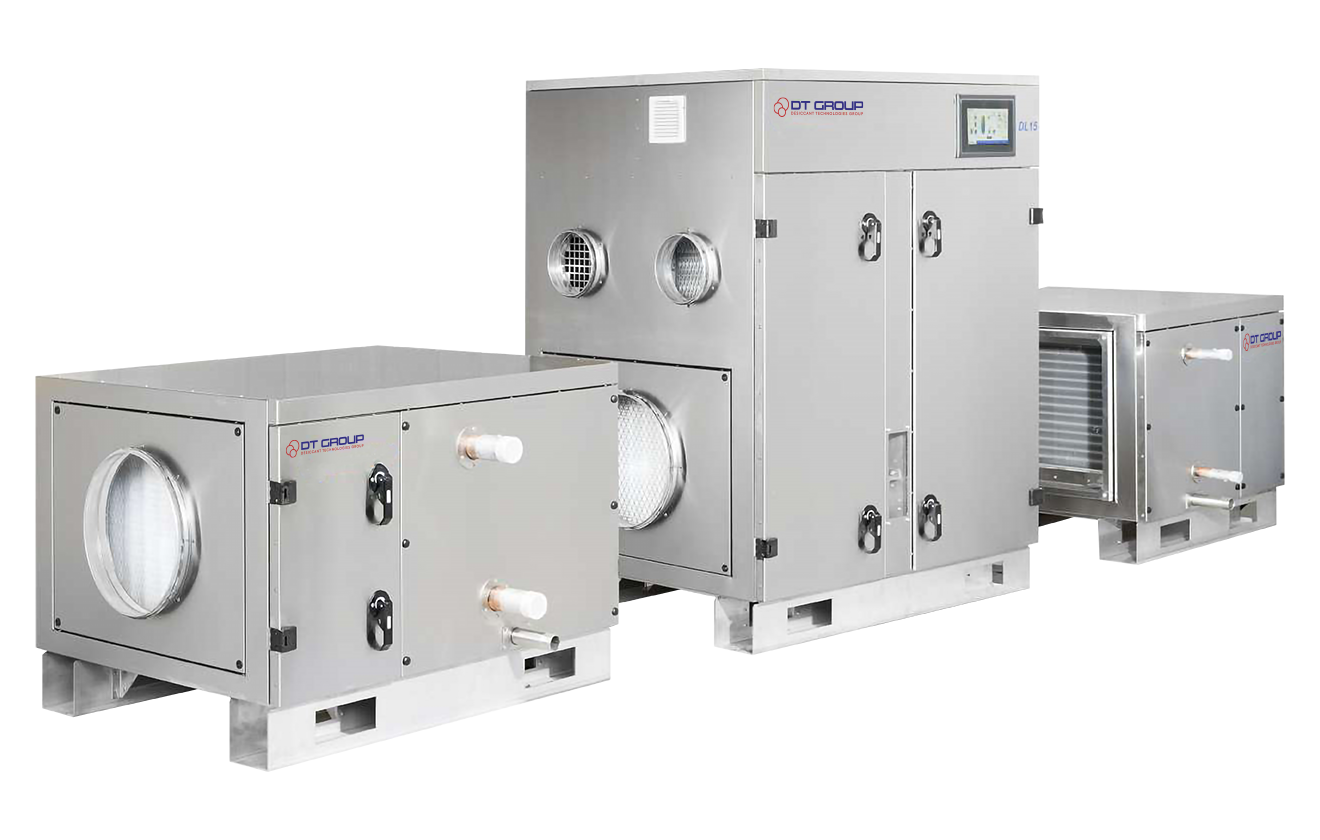

The DL series units are available with a range of pre and post treatment modules to meet the specific requirements of your application.
Rated airflow – 2500 m³/h
Dehumidification – 16,0 kg/h
Power supply – 19,5 kW (3×400 v, 50 Hz)
Dimensions – 1355x1000x1470
Construction Features
- The casing has high resistance to atmospheric corrosion and made of 1,0 mm stainless steel sheet metal; some parts made of 1,5 and 2,0 mm stainless steel in order to achieve rigidity; the panels with 20mm rockwool insulation
- Compact design and low weight of the unit
- Available in a range of casing materials (430SS, 304SS, 316L)
- Single piece, compact design, allowing to rapid installation
- Pre Post treatment modules available
- Low maintenance design and long life seals
- High quality components made exclusively by European manufacturers
- User friendly touch screen HMI as standard
Technical data
Process air
Rated airflow – 2500 m³/h
Available static pressure 400 Pа
Reactivation air
Rated airflow 680m3/h
Available static pressure 400 Pа
Power supply
(3х400V, 50 Hz) 21,5 kW
Current 35 А
Dehumification capacity
At 20Cdb, 60%RH – 16,0kg/h
Control system
Controller – Siemens
Display type – touch panel
Communications (options) – MODBUS, BACNET
Miscellaneous data
Weight 365 kg
Operating temperature -30/+40˚С
Max noise level without ductworks 78dBA
Air filter EU4
IEC protective class IP54
Insulation 20mm
