Desiccant Dehumidifiers: MDC Range

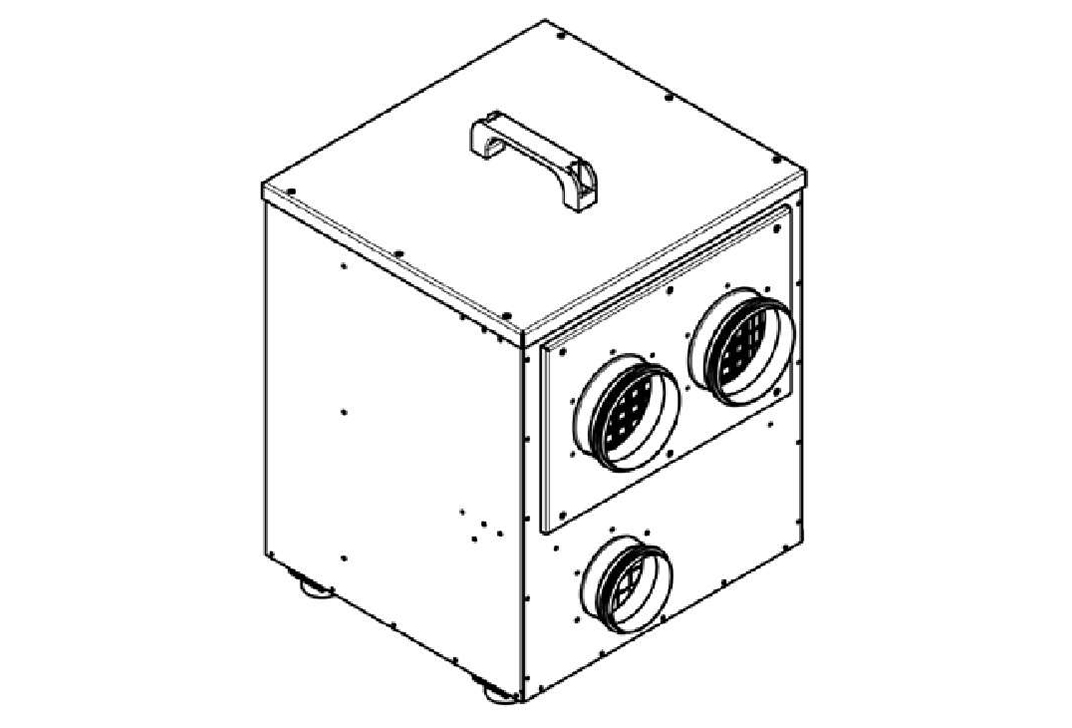

MDC160
The MDC 160 desiccant dehumidifier is designed to efficiently dehumidify air in open system applications. The unit could operate in recirculation mode too. The compact construction allows extended periods of operation with a minimum of maintenance. The design facilitates easy transport by one person. Dehumidifier is designed for drying-out buildings, new buildings as well as water damaged buildings.
Furthermore, it is used for room air dehumidification, dry air storage, water works and pump stations, etc. Especially suitable for low temperature and low humidity operation.
Rated airflow – 160 m³/h
Dehumidification – 0,6 kg/h
Power supply – 1 kW
Dimensions – 305х305х335 mm
Construction Features
- The casing has high resistance to atmospheric corrosion and made of 1,0 mm stainless steel sheet metal; some parts made of 1,5 and 2,0 mmstainless steel in order to achieve rigidity
- Compact design and low weight of the unit
- High performance at low temperatures and low relative humidity in a room
- Optional humidistat is available as an accessory
- Easy access to the internal components of the dehumidifier for the maintenance
- PTC-heater
- EC-fan;
- High efficiency of the washable silica gel rotor
- The design facilitates easy transport by one person
- All components made exclusively by European manufacturers
Technical data
Process air
Rated airflow – 160 m³/h
Available static pressure 130 Pa
Reactivation air
Rated airflow 45 m³/h
Available static pressure 80 Pa
Power supply
(1х230V, 50 Hz) 1kW
Current 4,6 A
Miscellaneous data
Weight 11 kg
Operating temperature -30/+40˚С
Max noise level without ductworks 55 dBA
Air filter EU4
IEC protective class IP44

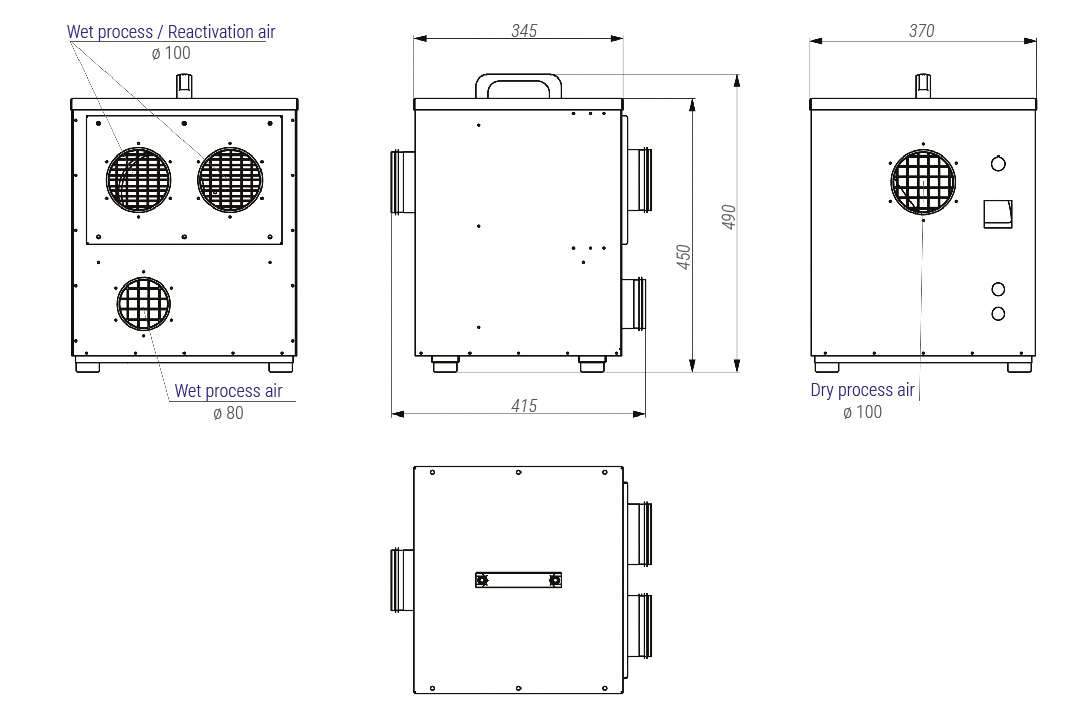

Dimensions:
Changes are possible without notice.

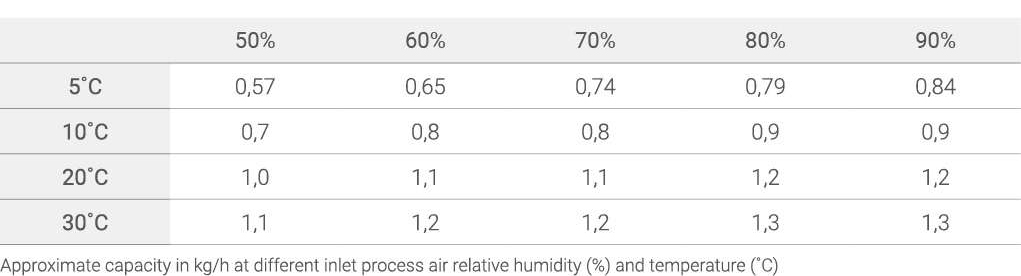

Dehumidification Capacity:
Approximate capacity in kg/h at different inlet process air relative humidity (%) and temperature (˚С)
