Desiccant Dehumidifiers: MDC Range

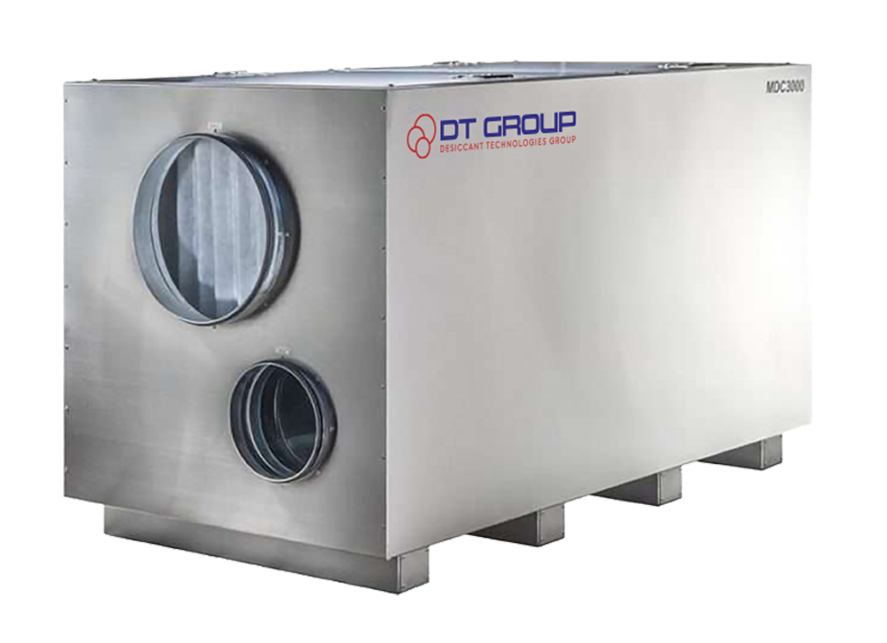

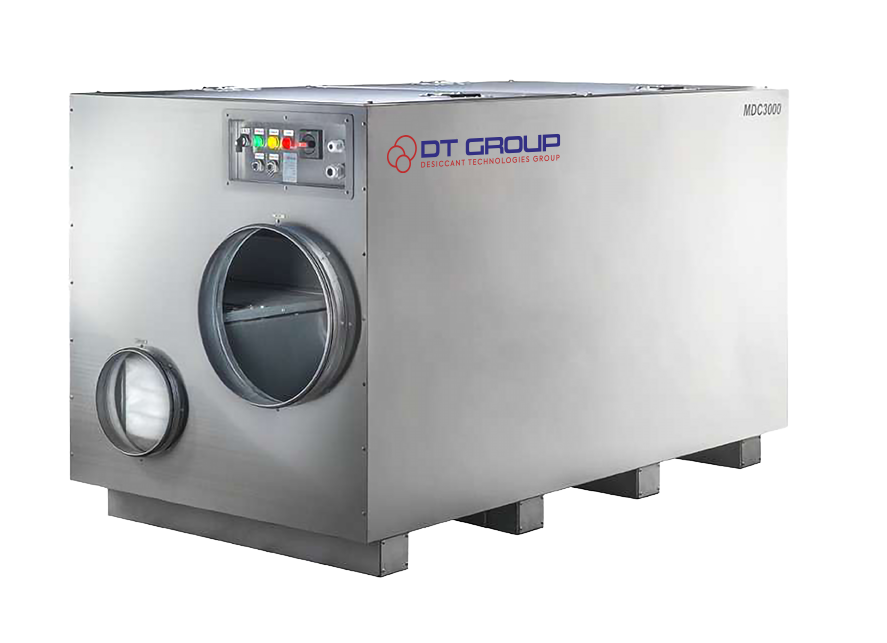

MDC3000
Desiccant Technologies Group industrial desiccant dehumidifier MDC3000 designed for general purposes – room air dehumidification and process drying. The compact construction allows extended periods of operation with a minimum of maintenance. Especially suitable for low temperature and low humidity operation. Unit includes desiccant rotor, EC-fans, tubular electric heating elements, filters and controls.
Rated airflow – 3000 m³/h
Dehumidification – 16.2 kg/h (20ºC/60% RH)
Power supply – 25,5 kW (3×400 V, 50 Hz)
Dimensions – 1705x955x1030mm
Construction Features
- The casing has high resistance to atmospheric corrosion and made of 1,0 mm stainless steel sheet metal; some parts made of 1,5 and 2,0 mmstainless steel in order to achieve rigidity
- Compact design and low weight of the unit
- High performance at low temperatures and low relative humidity in a room
- Optional humidistat is available as an accessory
- Microprocessor based control (optional)
- Easy access to the internal components of the dehumidifier for the maintenance
- EC-fans
- Tubular electric heating elements for regeneration
- High efficiency of the washable silica gel rotor
- All components made exclusively by European manufacturers
Technical data
Process air
Rated airflow – 3000 m³/h
Available static pressure 200 Pа
Reactivation air
Rated airflow 770 m^3/h
Available static pressure 270 Pа
Power supply
(3х400V, 50 Hz) 25,5 kW
Current 36 А
Miscellaneous data
Weight 285 kg
Operating temperature -30/+40˚С
Max noise level without ductworks 70 dBA
Air filter EU4
IEC protective class IP44
Insulation 20mm

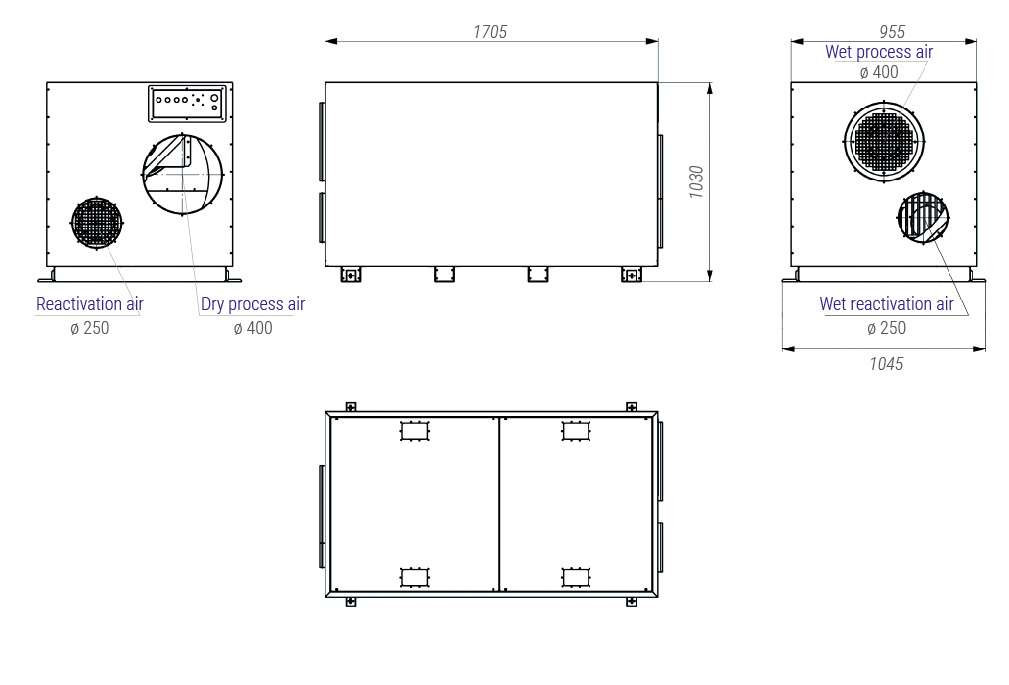

Dimensions:
Changes are possible without notice.

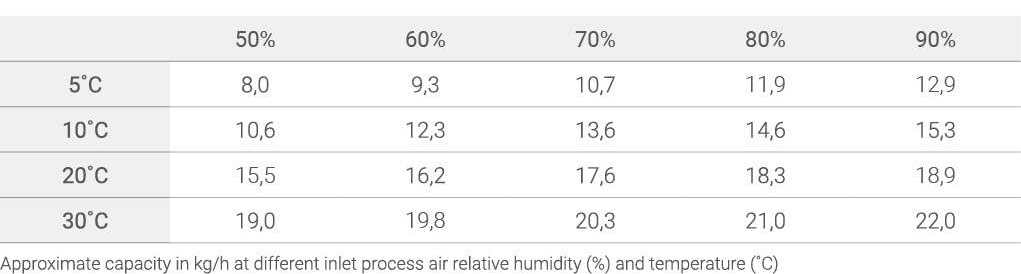

Dehumidification Capacity:
Approximate capacity in kg/h at different inlet process air relative humidity (%) and temperature (˚С)
