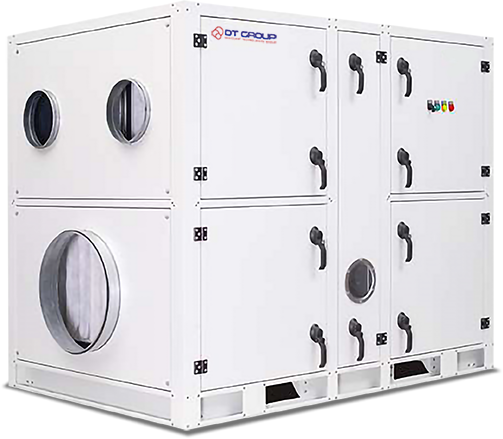

Desiccant Dehumidifiers: MDC Range
MDC5000
Desiccant Technologies Group industrial desiccant dehumidifier MDC5000 designed for general purposes – room air dehumidification and process drying. The compact construction allows extended periods of operation with a minimum of maintenance. Especially suitable for low temperature and low humidity operation. Unit includes desiccant rotor, EC-fans, reactivation heater, bag filters and controls. Panels insulated with 20mm rock wool insulation.
Rated airflow – 5000 m³/h
Dehumidification – 30 kg/h (20ºC/60% RH)
Power supply – 42,5 kW (3×400 V, 50 Hz)
Dimensions – 1960x1280x1605mm
Construction Features
- The casing is completely hermetic and panels are made of 1,0mm AluZinc sheet metal with isolation of 20mm (rock wool); it has high resistance to atmospheric corrosion. Powder painted panels (outside only); rigid frame made of 1,5mm AluZinc sheet metal (powder painted completely) to achieve rigidity
- Compact design and low weight of the unit
- High performance at low temperatures and low relative humidity in a room
- Optional humidistat is available as an accessory
- Microprocessor based control (optional)
- Tubular electric heating elements for regeneration (standard unit) as well as on request with water, steam or gas heating coil (customized unit)
- Easy access to the internal components of the dehumidifier for the maintenance
- EC-fans
- Pocket filters G4-F9
- High efficiency of the washable silica gel rotor
- All components made exclusively by European manufacturers
Technical Data
Process air
Rated airflow – 5000 m³/h
Available static pressure 260 Pа
Reactivation air
Rated airflow 1600 m³/h
Available static pressure 280 Pа
Power supply
(3х400V, 50 Hz) 42,5 kW
Current 62 А
Power supply (steam/water/gas reactivation)
(3х400V, 50 Hz) 6,5 kW
Current 9,4 А
Miscellaneous data
Weight 560 kg
Operating temperature -30/+40˚С
Max noise level without ductworks 70 dBA
Air filter EU4
IEC protective class IP55
Insulation 20mm

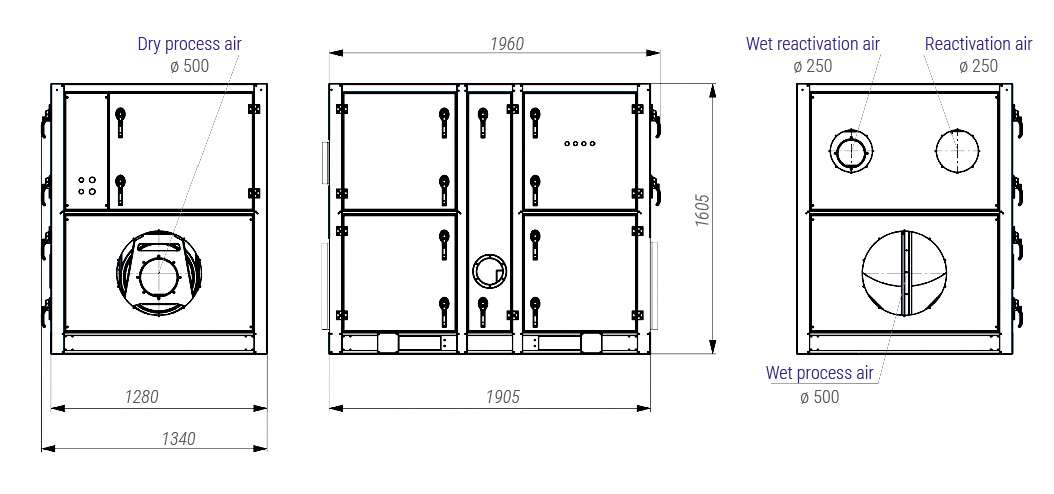

Dimensions:
Changes are possible without notice.

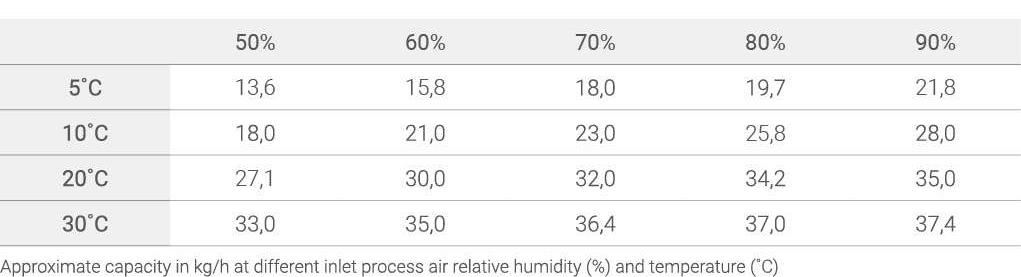

Dehumidification Capacity:
Approximate capacity in kg/h at different inlet process air relative humidity (%) and temperature (˚С)
