Desiccant dehumidifier MDC7500

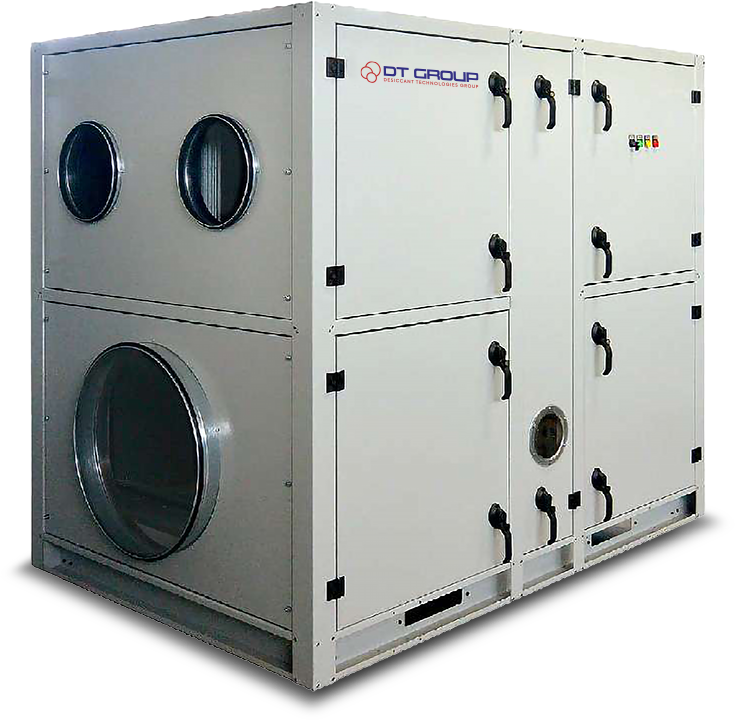

Desiccant Technologies Group industrial desiccant dehumidifier MDC7500 specially designed for the ice arenas, suitable for low temperature and low humidity operation. Unit includes desiccant rotor, EC-fans, reactivation heater, filters and controls. Panels insulated with 40mm rock wool insulation. Casing made of aluzink steel, coated by powder painting.



Constructional Features:

  • The casing is completely hermetic and panels are made of 1,0mm AluZinc sheet metal with isolation of 40mm (rock wool); it has high resistance to atmospheric corrosion. Powder painted panels (outside only); rigid frame made of 1,5mm AluZinc sheet metal (powder painted completely) to achieve rigidity
  • Compact design and low weight of the unit
  • High performance at low temperatures and low relative humidity in a room
  • Optional humidistat is available as an accessory
  • Microprocessor based control (optional)
  • Tubular electric heating elements for regeneration (standard unit) as well as on request with water, steam or gas heating coil (customized unit)
  • Easy access to the internal components of the dehumidifier for maintenance
  • EC-fans
  • Pocket filters G4-F9
  • High efficiency of the washable silica gel rotor
  • All components made exclusively by European manufacturers

Technical data:

Process air
Rated airflow – 7500 m³/h
Available static pressure 400 Pа

Reactivation air
Rated airflow 1500 m³/h
Available static pressure 300 Pа

Power supply
(3х400V, 50 Hz) 44 kW
Current 64 А

Power supply (steam/water/gas reactivation)
(3х400V, 50 Hz) 8 kW
Current 12 А

Miscellaneous data
Weight 850 kg
Operating temperature -30/+40˚С

Max noise level
without ductworks 70 dBA
Air filter (pocket) EU4…EU9
IEC protective class IP55

Insulation 40mm

Fill a Request Download PDF

Have questions? Contact us here!

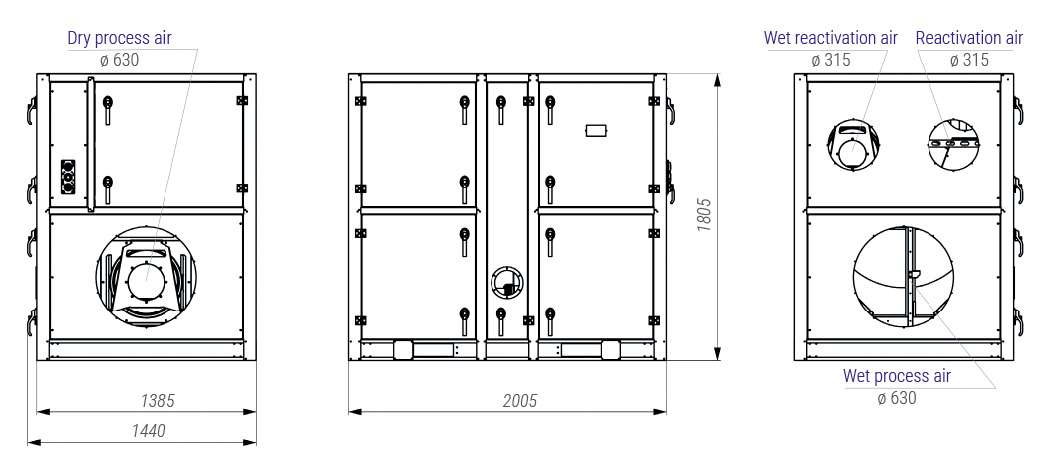

Dimensions:

Changes are possible without notice

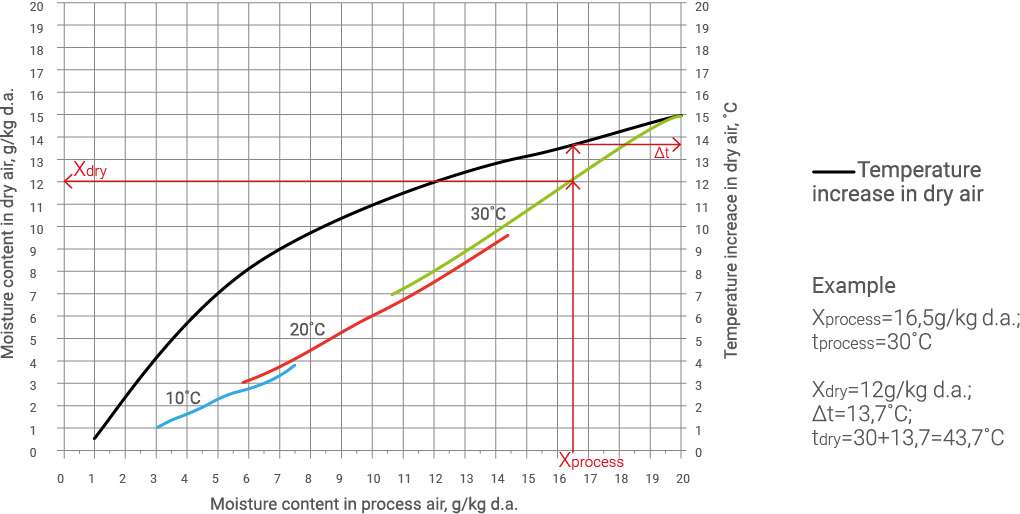

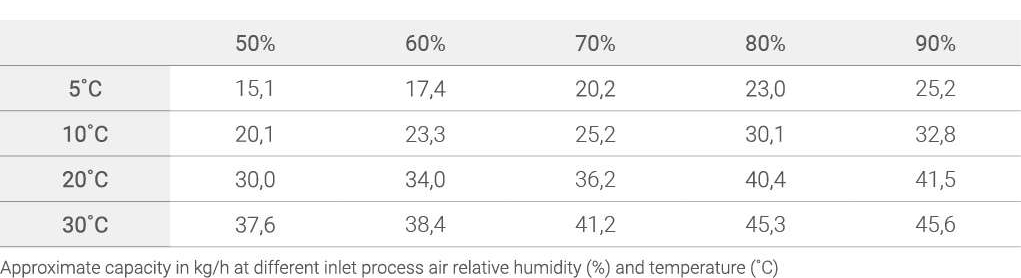

Dehumidification Capacity:

Key Applications

The dehumidifier is designed to control humidity, maintaining humidity at the required level, drying room.

For the storage of products, materials, raw materials:

In manufacturing, production shops, premises and the food industry:

  • In cold storage / cold storage
  • For the storage of grain mass
  • In ship repair, shipbuilding industry.
  • For the carriage of goods by sea.
  • For conservation of power
  • For storage of fertilizers
  • For the storage and preservation of military technology and equipment
  • For the ventilation and air conditioning
  • For storage of leather products
  • For the storage of fur
  • For garages, car parks
  • For the basement
  • For archives, museums
  • Industrial dehumidifier for freezing
  • Industrial dehumidifier for the production of sausages
  • Industrial dehumidifier for sugar production
  • Industrial dehumidifier for confectionery production
  • Industrial dehumidifier for the production of marshmallows
  • Industrial dehumidifier for the production of ice cream
  • Industrial dehumidifier for the production of meat products
  • Industrial dehumidifier for beer production
  • Industrial dehumidifier for the production of dairy products
  • Industrial dehumidifier for cheese production
  • Industrial dehumidifier for the pharmaceutical industry.
  • Industrial dehumidifier for ice arenas, the rink.
  • Industrial dehumidifier for the electronics industry, the production of electronics.

High Standards

Our Desiccant dehumidifiers will help you to solve the problems that arise due to increased moisture in the air which are corrosion, product damage, product adhesion, mold and fungi growth on the surfaces. We guarantee that our quality and price ratio is the best in the market.

Vast Experience

Practical experience in the desiccant dehumidification more than 15 years.

Made in Europe

All components made exclusively by European manufacturers.

EU standards

The equipment complies to all of the applicable EU directives and regulations.

Method of Operation

A desiccant dehumidifier removes water from a flow of the air that passes through it. The heart of this process is an adsorption rotor coated with a special substance that absorbs the water molecules that make up the moisture in the passing air (Process air). When saturated, the rotor is rotated over to a regeneration zone, where it is dried with heated air (Reactivation air). The warm, humid regeneration air is led away out of the unit (Wet air) and the rotor is once again ready to absorb water molecules.
