Desiccant Dehumidifier MDC300

Desiccant Technologies Group desiccant dehumidifier MDC300 is designed for general purposes – room air dehumidification and process drying. The compact construction allows extended periods of operation with a minimum of maintenance. Dehumidifier is designed for drying-out buildings, new buildings as well as water-damaged buildings; to control humidity in basements and garages. Furthermore, it is used for room air dehumidification, dry air storage, water works and pump stations, etc. Especially suitable for low temperature and low humidity operation.

Casing – stainless steel.



Constructional Features:

  • The casing has high resistance to atmospheric corrosion and made of 1,0 mm stainless steel sheet metal; some parts made of 1,5 and 2,0 mm stainless steel in order to achieve rigidity
  • Compact design and low weight of the unit
  • High performance at low temperatures and low relative humidity in a room
  • Optional humidistat is available as an accessory
  • Easy access to the internal components of the dehumidifier for the maintenance
  • PTC-heater
  • High efficiency of the washable silica gel rotor
  • All components made exclusively by European manufacturers

Technical data:

Process air
Rated airflow – 300 m^3/h
Available static pressure 250 Pа

Reactivation air
Rated airflow 50 m^3/h
Available static pressure 100 Pа

Power supply
(1х230V, 50 Hz) 1,4 kW
Current 6,1 А

Miscellaneous data
Weight 19 kg
Operating temperature -30/+40˚С

Max noise level
without ductworks 55 dBA
Air filter EU4
IEC protective class IP44

Fill a Request Download PDF

Have questions? Contact us here!

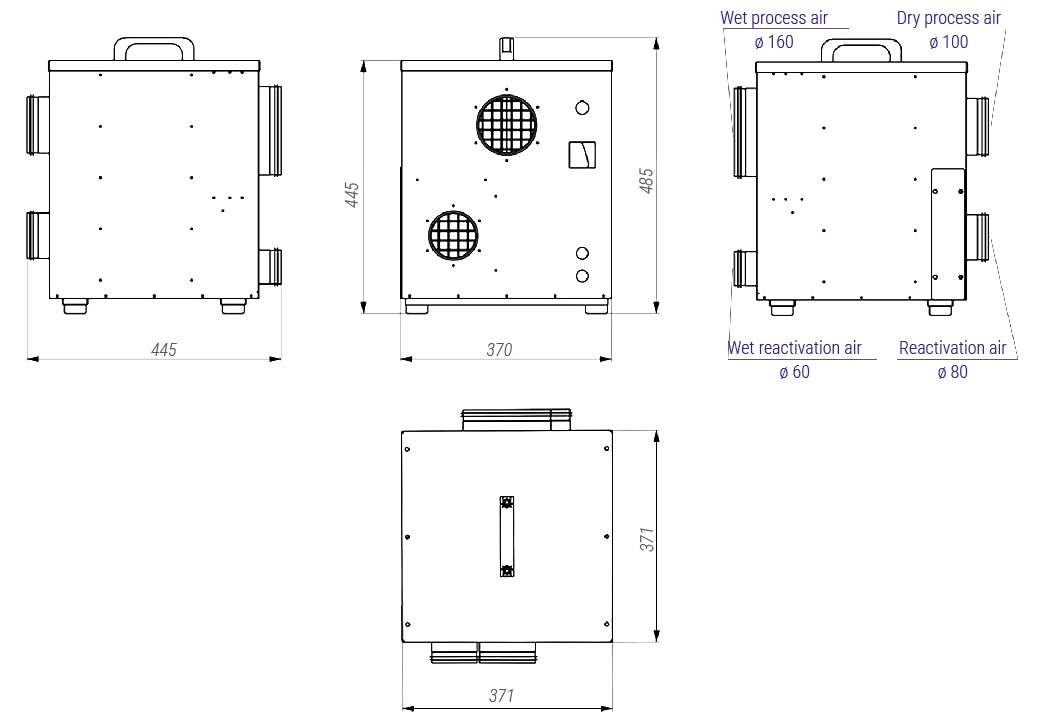

Dimensions:

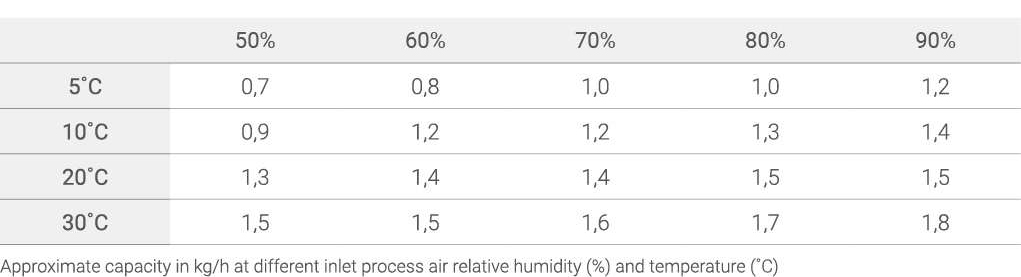

Dehumidification Capacity:

High Standards

Our Desiccant dehumidifiers will help you to solve the problems that arise due to increased moisture in the air which are corrosion, product damage, product adhesion, mold and fungi growth on the surfaces. We guarantee that our quality and price ratio is the best in the market.

Vast Experience

Practical experience in the desiccant dehumidification more than 15 years.

Made in Europe

All components made exclusively by European manufacturers.

EU standards

The equipment complies to all of the applicable EU directives and regulations.

Method of Operation

desiccant dehumidifier removes water from a flow of the air that passes through it. The heart of this process is an adsorption rotor coated with a special substance that absorbs the water molecules that make up the moisture in the passing air (Process air). When saturated, the rotor is rotated over to regeneration zone, where it is dried with heated air (Reactivation air). The warm, humid regeneration air is led away out of the unit (Wet air) and the rotor is once again ready to absorb water molecules.
