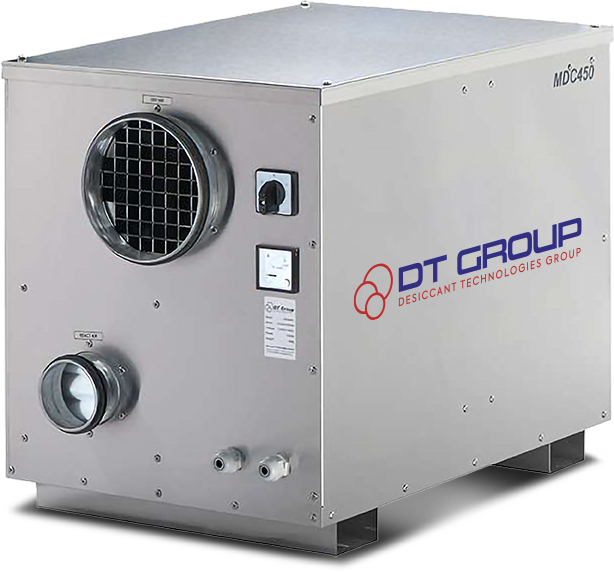

Desiccant Dehumidifier MDC450

industrial dehumidifiers MDC450

Desiccant Technologies Group desiccant dehumidifier MDC450 is designed for general purposes – room air dehumidification and process drying. The compact construction allows extended periods of operation with a minimum of maintenance. Dehumidifier is designed for drying-out buildings, new buildings as well as water-damaged buildings; to control humidity in basements and garages. Furthermore, it is used for room air dehumidification, dry air storage, water works and pump stations, etc. Especially suitable for low temperature and low humidity operation.

Casing – stainless steel.
Constructional Features:

  • The casing has high resistance to atmospheric corrosion and made of 1,0 mm stainless steel sheet metal; some parts made of 1,5 and 2,0 mm stainless steel in order to achieve rigidity
  • Compact design and low weight of the unit
  • High performance at low temperatures and low relative humidity in a room
  • Optional humidistat is available as an accessory
  • Easy access to the internal components of the dehumidifier for the maintenance
  • PTC-heater
  • High efficiency of the washable silica gel rotor
  • All components made exclusively by European manufacturers

Technical data:

Process air
Rated airflow 450 m^3/h
Available static pressure 120 Pа
Reactivation air
Rated airflow 120 m^3/h
Available static pressure 50 Pа
Power supply
(1х230V, 50 Hz) 3 kW
Current 13 А

Miscellaneous data
Weight 24 kg
Operating temperature -30/+40˚С
Max noise level
Max noise level
without ductworks 62dBA
Air filter EU4
IEC protective class IP44



Get more information in pdf…



Dimensions:

Changes are possible without notice

5˚С 60% 70% 80% 90%
5˚С

1,1

1,23

1,4

1,52

1,67

10˚С

1,4

1,6

1,7

1,9

2,0

20˚С

2,0

2,2

2,3

2,43

2,46

30˚С

2,5

2,6

2,7

2,8

2,9

MDC450-graph
industrial desiccant dehumidifier Desiccant Technologies Group mdc800industrial desiccant dehumidifier Desiccant Technologies Group mdc800industrial desiccant dehumidifier Desiccant Technologies Group mdc800industrial desiccant dehumidifier Desiccant Technologies Group mdc450industrial desiccant dehumidifier Desiccant Technologies Group mdc800industrial desiccant dehumidifier Desiccant Technologies Group mdc800industrial desiccant dehumidifier Desiccant Technologies Group mdc800industrial desiccant dehumidifier Desiccant Technologies Group mdc450



The dehumidifier is designed to control humidity, maintaining humidity at the required level, drying room. Key Applications:
For the storage of products, materials, raw materials:
Industrial dehumidifier in cold storage / cold storage
Industrial dehumidifier for the storage of grain mass
Industrial dehumidifier in ship repair, shipbuilding industry.
Industrial dehumidifier for the carriage of goods by sea.
Industrial dehumidifier for conservation of power
Industrial dehumidifier for storage of fertilizers
Industrial dehumidifier for the storage and preservation of military technology and equipment
Industrial dehumidifier for the ventilation and air conditioning
Industrial dehumidifier for storage of leather products
Industrial dehumidifier for the storage of fur
Industrial dehumidifier for garages, car parks
Industrial dehumidifier for the basement
Industrial dehumidifier for archives, museums

In manufacturing, production shops and premises:
In the food industry:
Industrial dehumidifier for freezing
Industrial dehumidifier for the production of sausages
Industrial dehumidifier for sugar production
Industrial dehumidifier for confectionery production
Industrial dehumidifier for the production of marshmallows
Industrial dehumidifier for the production of ice cream
Industrial dehumidifier for the production of meat products
Industrial dehumidifier for beer production
Industrial dehumidifier for the production of dairy products
Industrial dehumidifier for cheese production

Industrial dehumidifier for the pharmaceutical industry.
Industrial dehumidifier for ice arenas, the rink.
Industrial dehumidifier for the electronics industry, the production of electronics.
